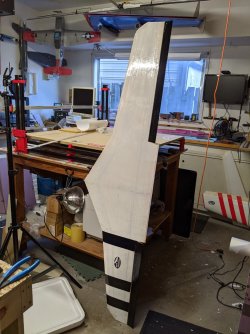

thenated0g
Very Strong User
Nothing wrong with that
Aloft Forums
This is a sample guest message. Register a free account today to become a member! Once signed in, you'll be able to participate on this site by adding your own topics and posts, as well as connect with other members through your own private inbox!
Show us what you are working on..
- Thread starter Wayne
- Start date
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
This morning I tapered the middle to the tips to thin the overall wing thickness (15mm @root and 8mm @tip) - the sanding all went pretty well.
Next, I laminated the tops and bottoms with 3M77 and applied some sandbags - I then taped the two wings back to back while the glue cures over the weekend.
The paper will come off before I add the spar - I also left some TE thickness for some final sanding before the skins go on (insurance against damage).
Next, I laminated the tops and bottoms with 3M77 and applied some sandbags - I then taped the two wings back to back while the glue cures over the weekend.
The paper will come off before I add the spar - I also left some TE thickness for some final sanding before the skins go on (insurance against damage).

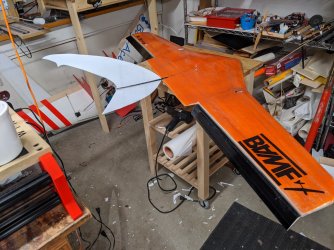

thenated0g
Very Strong User
Too hot to do anything outside, so cutting some wings.
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
@thenated0g - cuts really well - you will be like a kid in a candy shop!
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
I also did a bit of work on my pylon racer turned sloper - I have been hankering to add some flaps to to slow it down with crow - well, the flaps and servos are in and it's all looking pretty good - I used my micro cable tie hinges again.
thenated0g
Very Strong User
That a pretty wild tail.
Nate - I have watched several of your wire cutting videos and I don't fully understand the methods you are using. I usually blocked my foam and then cut the wing. Some entry to normalize the wire temp was the common method before CNC, but with CNC I am not used to seeing that used. You should be cutting the foam via the heat from the wire, not actually from the wire. It seems that the foam is moving from wire contact with the foam?? It looks like your foams are cutting well not too much in the way of waves.
If you sign down your trailing edge, is it nice and straight, or does it have some curve? Same with the leading edge? If you have any curve, then you are dragging the wire through the foam. I don't know if you can control the kerf with your software? Are you able to control the heat on the wire?
I think Martin said he was using nichrome wire (spelling?) I remember playing with that stuff long ago and it caused many issues. We all started using stainless steel wire and never looked back. The nice thing is you can pull more tension, lasts longer, usually costs less, and use thicker wire. Might be worth a little investigation.
Does you software have different presets for different foam types?
I will add that I was never very good at this, mostly replied on my buddies. Last time I cut a core was a very long time ago.
Nate - I have watched several of your wire cutting videos and I don't fully understand the methods you are using. I usually blocked my foam and then cut the wing. Some entry to normalize the wire temp was the common method before CNC, but with CNC I am not used to seeing that used. You should be cutting the foam via the heat from the wire, not actually from the wire. It seems that the foam is moving from wire contact with the foam?? It looks like your foams are cutting well not too much in the way of waves.
If you sign down your trailing edge, is it nice and straight, or does it have some curve? Same with the leading edge? If you have any curve, then you are dragging the wire through the foam. I don't know if you can control the kerf with your software? Are you able to control the heat on the wire?
I think Martin said he was using nichrome wire (spelling?) I remember playing with that stuff long ago and it caused many issues. We all started using stainless steel wire and never looked back. The nice thing is you can pull more tension, lasts longer, usually costs less, and use thicker wire. Might be worth a little investigation.
Does you software have different presets for different foam types?
I will add that I was never very good at this, mostly replied on my buddies. Last time I cut a core was a very long time ago.
thenated0g
Very Strong User
@Wayne No problem, but Man i have got so many comments about the drag lol. Its not a problem at all. If you watch the video its always at the end once the cut is done and over. Here's what's happening. I am using Rene 41 27g wire. Its a crazy small kerf, like 2mm. Its not touching the foam. the Rigid brand foam surface is coated with either a slippery plastic on one side or the slippery foil on the other. Its sitting on perfectly smooth mdf. Its so little friction that i put that stone turtle on top so that a tiny bump in the table doesn't misalign the foam. Its that sensitive. So i can tell you that the foam is not dragging at all.....on the first time it cuts thru the foam at least. When it is dragging is when it is coming back thru a place it has already cut, because its done with the cut. The path i have programmed uses the same exact horizontal cut to enter and exit the foam. The foam, when cut, goes from a nice fluffy material to harder thicker material. It has been cut and shrunk back. That precut material would require a hotter wire to recut. (does that make sense?)
I don't make any adjustments to the cutting files for different foam, i use power output to adjust. I keep a mental note of the Amps for each type of foam. The white fluffy stuff i cut at about 1.35 amps and around 25v. The Pink and similar im cutting at 1.5amps. The software i am using (devWing foam) has a smart kerf feature that takes into account the fact that the wire will moving slower on the wingtips, allowing more heat/energy into the foam, and adjust accordingly to move the cutting path a little farther away so the final result matches the design.
Rene wire is a super alloy made specifically for high tension under heat. Its an interesting read.
On the other hand, even though i have been cutting stuff nonstop like a mad scientist the last few weeks, im still a newb and appreciate all your comments. Im still figuring this all out "the hard way" mostly by myself so your input is always appreciated.
I don't make any adjustments to the cutting files for different foam, i use power output to adjust. I keep a mental note of the Amps for each type of foam. The white fluffy stuff i cut at about 1.35 amps and around 25v. The Pink and similar im cutting at 1.5amps. The software i am using (devWing foam) has a smart kerf feature that takes into account the fact that the wire will moving slower on the wingtips, allowing more heat/energy into the foam, and adjust accordingly to move the cutting path a little farther away so the final result matches the design.
Rene wire is a super alloy made specifically for high tension under heat. Its an interesting read.
On the other hand, even though i have been cutting stuff nonstop like a mad scientist the last few weeks, im still a newb and appreciate all your comments. Im still figuring this all out "the hard way" mostly by myself so your input is always appreciated.
thenated0g
Very Strong User
" René 41 is a nickel-based high temperature alloy developed by General Electric. It retains high strength in the 1,200–1,800 °F (600–1,000 °C) temperature range. It is used in jet engine and missile components, and other applications that require high strength at extreme temperatures. René 41 is considered a nickel alloy based upon its chemical composition.[1] "
thenated0g
Very Strong User

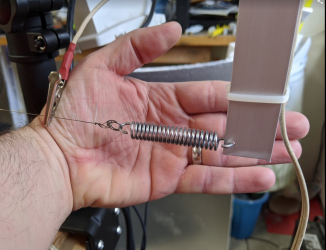

This is the spring i am using. I cannot pull this apart with my bare hands, i had to use some zip ties to pull this apart as seen. So that wire is under a ton of tension while cutting.
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
Well I unwrapped my fuse and it's not too bad - CF braid over a 0.8mm 3D printed fuse - I also used a 3D printed canopy edge former to push in the joggled edge - I always knew I would have to do a bit of sanding, but with the 3D printed tail dry fitted it is starting to look like a fast glider - I will bring a proper canopy that will be flush with the fuse!
thenated0g
Very Strong User
that thing looks fast @bracesport
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
@thenated0g - scarily fast! No brakes on this one!
gp49
Very Strong User
@bracesport you can ad a brake on this one no problem it will look cool too - it's just another little printing/machining project for you!
Last edited:
Never been a fan of those pop up canopy brakes. Maybe some have had good luck, but generally just makes the plane very unstable.
Nate - I had bought some of that René wire, but never actually used it. Sounds like the software is doing things pretty well for you. I will say the wire temp control on my old machine was a very nice feature, but not sure many software packages can support it. It basically does the same as you, it monitors the amperage and adjusts. I had noticed most of the movement was at the lead out. I just never used such a large lead, almost always blocked to the airfoil, but this means you have to adjust for the kerf in the cut. The wire super heats when not cutting, and then cools as it enters the foam. (I know you know all of this, just saying it for others that may be reading along.)
Maybe you can start making some Slope Money kits for me. I have the rights from Adam to produce the kits again. They were a really fun little EPP plane. Would be really fun in pink foam - so light!
Nate - I had bought some of that René wire, but never actually used it. Sounds like the software is doing things pretty well for you. I will say the wire temp control on my old machine was a very nice feature, but not sure many software packages can support it. It basically does the same as you, it monitors the amperage and adjusts. I had noticed most of the movement was at the lead out. I just never used such a large lead, almost always blocked to the airfoil, but this means you have to adjust for the kerf in the cut. The wire super heats when not cutting, and then cools as it enters the foam. (I know you know all of this, just saying it for others that may be reading along.)
Maybe you can start making some Slope Money kits for me. I have the rights from Adam to produce the kits again. They were a really fun little EPP plane. Would be really fun in pink foam - so light!
thenated0g
Very Strong User
This is fun time for me and foam is cheap. Pm me the info and I can at least get some test cuts done to see.
Don't worry about it. Just throught I would throw it out there in case you were interested in production. I still have a number of prototypes I need to put together and test fly.
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
some wing action
Wave spar halves are set and now the wing halves are being epoxied together - I am using a poor mans version of Doc J's SWS spar system - I also built some wing tubes with magnets embedded, and printed the wing end caps - next step will be to fit the wing tubes.
Wave spar halves are set and now the wing halves are being epoxied together - I am using a poor mans version of Doc J's SWS spar system - I also built some wing tubes with magnets embedded, and printed the wing end caps - next step will be to fit the wing tubes.
Konrad
Very Strong User
Where or what are you using for the spar caps?
Have you googled box spar and/or I beams?
Have you googled box spar and/or I beams?
bracesport
Very Strong User
- Joined
- Dec 14, 2019
- Messages
- 310
- Reaction score
- 146
