Smallest 6 ch rx to use with a FrSkyTandem X20?
- Thread starter Timothy
- Start date
The are a number of different series of receivers. 2.4gig, and Tandem receivers, being 2.4 and 900meg receivers. A standard 2.4 gig can be the G series meaning it also has a barometer for height telemetry often used in gliders. A standard 2.4 gig 6 channel small receiver is the the Archer Plus R6 model. This receiver has 6 PWM servo connectors.
Smallest Tandem (dual frequency) with 6 channel ports:
alofthobbies.com
The TDMX is smaller, but need to use a serial bus servo (or similar) to get the 6 channels.
Smallest 6 channel on just the 2.4 band with 6 channels are the following:
alofthobbies.com
Any of these will talk with your Tandem radio and work very well. If you really need small, then this is probably your better options. The 900mhz antenna on the TD-R6 is pretty massive thing to hide away in a small plane.
Hope this helps.

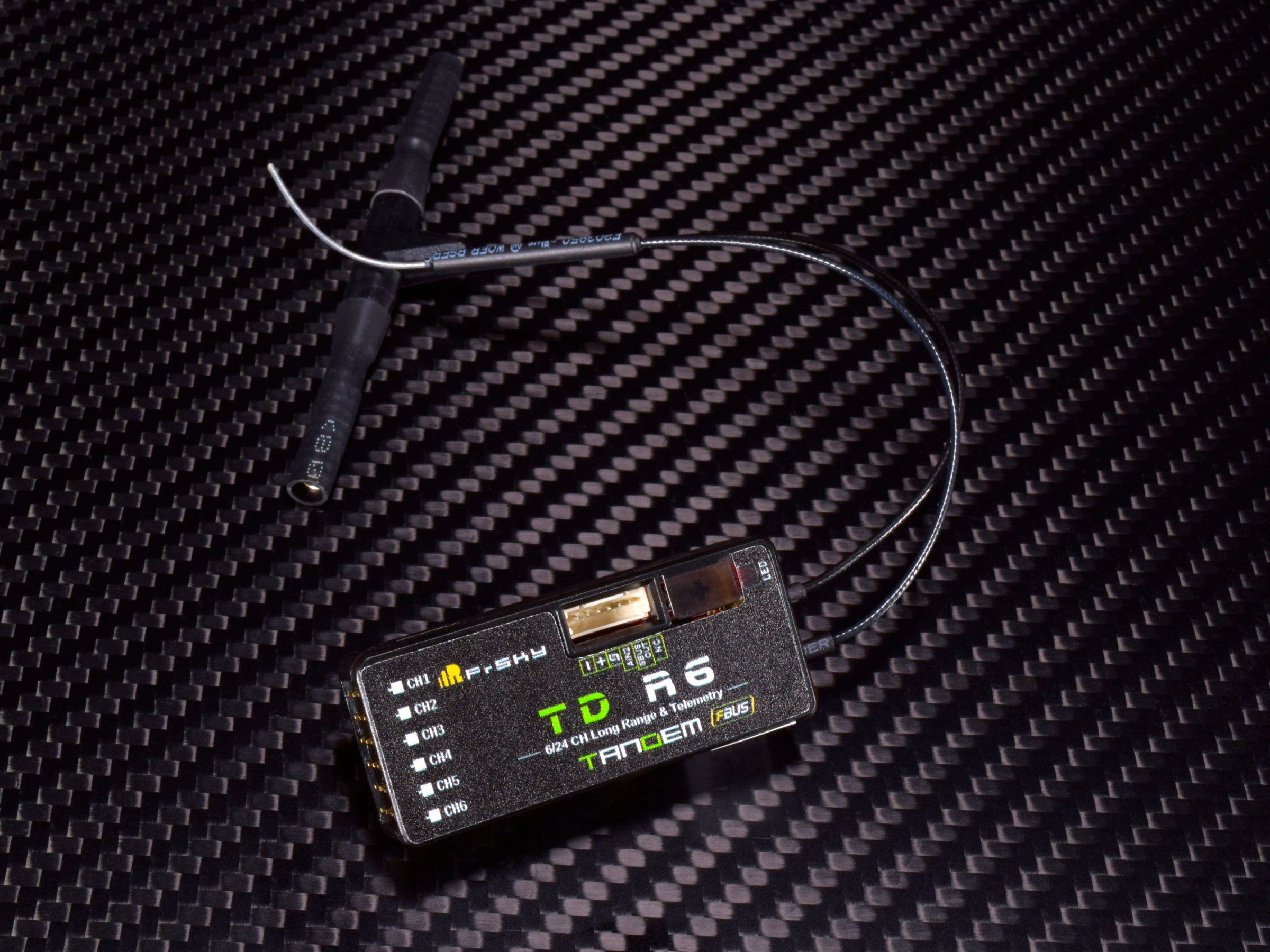

FrSky TD R6
The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 900Mhz and 2.4Ghz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control, but also benefit from an enhanced level of reliability...
alofthobbies.com
The TDMX is smaller, but need to use a serial bus servo (or similar) to get the 6 channels.
Smallest 6 channel on just the 2.4 band with 6 channels are the following:
FrSky Archer
FrSky Archer SeriesThe Archer Series feature FrSky's newest ACCESS protocol, so make sure your transmitter supports ACCESS or you will not be able to talk with the Archers. ACCESS brings several new features to FrSky radios. VFR telemetry reports packet loss data to better show the quality of...
alofthobbies.com
Any of these will talk with your Tandem radio and work very well. If you really need small, then this is probably your better options. The 900mhz antenna on the TD-R6 is pretty massive thing to hide away in a small plane.
Hope this helps.
In general you can use the following receivers with a Tandem transmitter:
alofthobbies.com
alofthobbies.com
alofthobbies.com
These days most people are using either a Tandem or an Archer based receiver. Tandem is dual frequency, great for larger models. The Archer line is popular as it costs less, works better for tighter airframes and is still very reliable.
FrSky Archer
FrSky Archer SeriesThe Archer Series feature FrSky's newest ACCESS protocol, so make sure your transmitter supports ACCESS or you will not be able to talk with the Archers. ACCESS brings several new features to FrSky radios. VFR telemetry reports packet loss data to better show the quality of...
alofthobbies.com
FrSky Tandem
The FrSky Tandem line of receivers offer both the 2.4 GHz and 900 MHz bands for advanced dual frequency security and extreme range performance with advanced telemetry. Compatible with: FrSky Tandem systems like: X18, X20 Highly recommended if you have encountered any issues on the 2.4GHz band...
alofthobbies.com
FrSky ACCST Receivers
FrSky's new Telemetry system has many new exiting features. Starting off with the new Taranis Transmitter that brings never before seen power to the radio market at an incredible price point. The Taranis easily outperforms radios costing 5 times more! Now add FrSky's revolutionary Smart Port...
alofthobbies.com
These days most people are using either a Tandem or an Archer based receiver. Tandem is dual frequency, great for larger models. The Archer line is popular as it costs less, works better for tighter airframes and is still very reliable.
